Building Name: Al Sa’ad Plaza Towers
Location: Lusail, Qatar
Address: CG84+Q4G, Lusail, Qatar
Design Architect: Foster+Partners
Executive Architect: Heerim Architects & Planners
General Contractor: Hyundai Engineering & Construction (HDEC)
Structural Engineer: Foster+Partners
MEP Engineer: Foster+Partners
Civil Engineer: Langan
Lighting Design: Foster+Partners
Owner: Qatari Diar Real Estates Investment Company
Main Structural Material(Exterior): Marine-grade aluminum cladding
Main Structural Material (Interior): Reinforced concrete
Completion Year: 2025
Area: 1.1 million m²

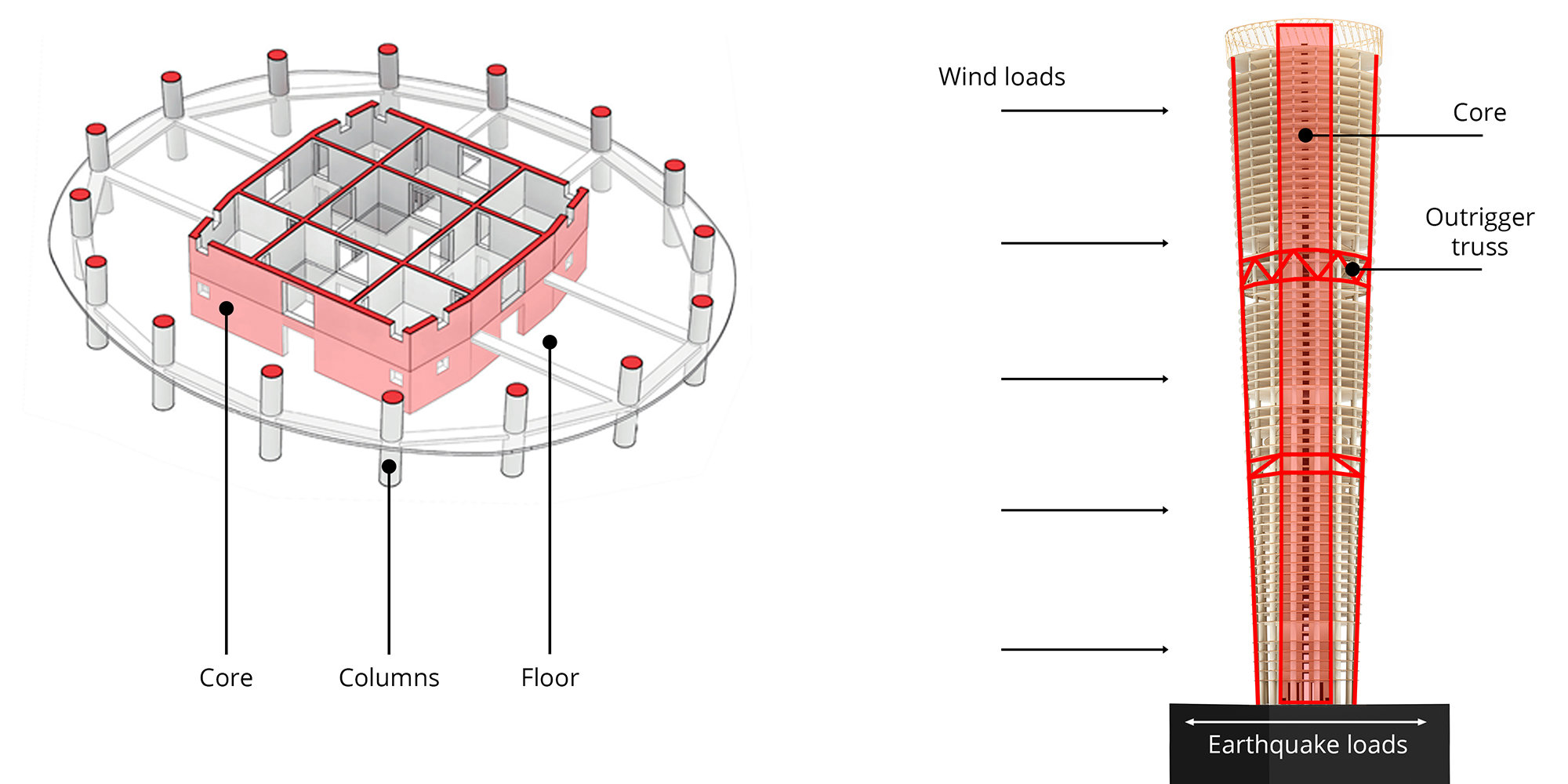

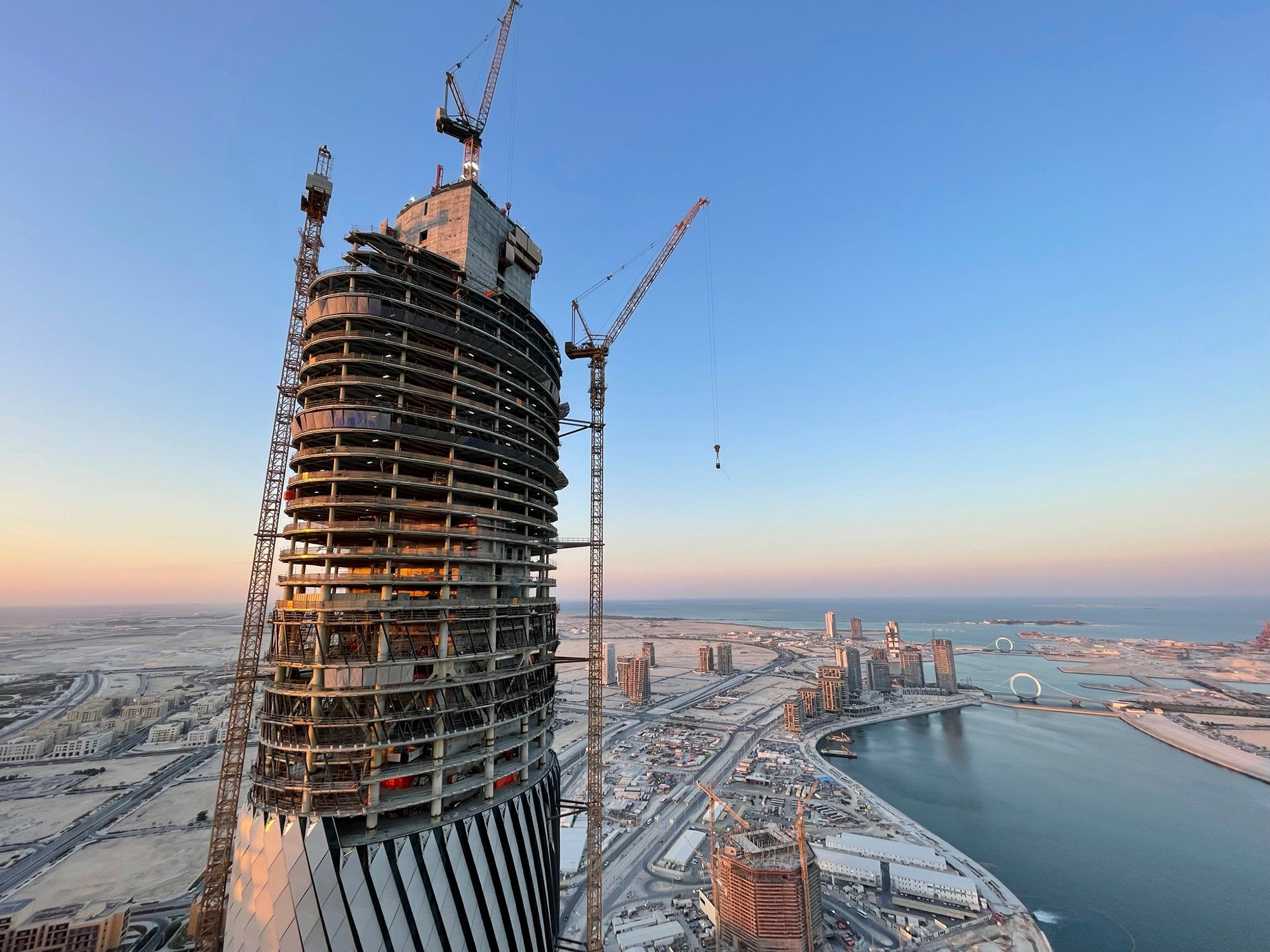

AE Interests: Four-tower office complex (2×-301 m, 2×-219 m) with shared podium. RC cores with sixteen inclined perimeter mega-columns; outrigger/belt trusses. Elliptical plans rotate 90° to mitigate wind/torsion. Composite long-span floors; direct load paths to deep raft/piles (coastal soils). Marine-grade aluminum curtain wall with external triangular fins; high-performance glazing. Integrated LRT connection; unitized facade and jump-form cores for buildability.
