Engineering Education and Research Center – Austin, TX

Posted in Built by Rachel Schutte on September 24, 2018

eerAerial  eerfront4  eerPorch  EERC-3
[1, 2, 3, 4]

Building:  Engineering Education and Research Center
Location: Austin, Texas
Address: 301 E Dean Keeton St. Austin, TX 78712
Architect: Ennead Architects
Architect of Record: Jacobs (also consulted on laboratory designs)
Structural Engineer: Datum Engineers
M+E Engineer: Affiliated Engineers, Inc.
Construction Manager: Hensel Phelps Construction Co.
Size 433,000 sf
Appx. Cost: $310,000,000
Completed 2017

AE Interest:
University of Texas Cockrell School of Engineering research, laboratory and congregation space [a]; two towers with inward facing curtain walls towards a large atrium space to promote openness and collaboration throughout the building; pursuing LEED Silver [b].  Home of the Mulva Auditorium.
[a, b]

Video: [1]
Article with plans + more images: [2]
Full list of consultants  here: [a]

(post updated 9/2018:GB)  UT, EERC, EER, ECE

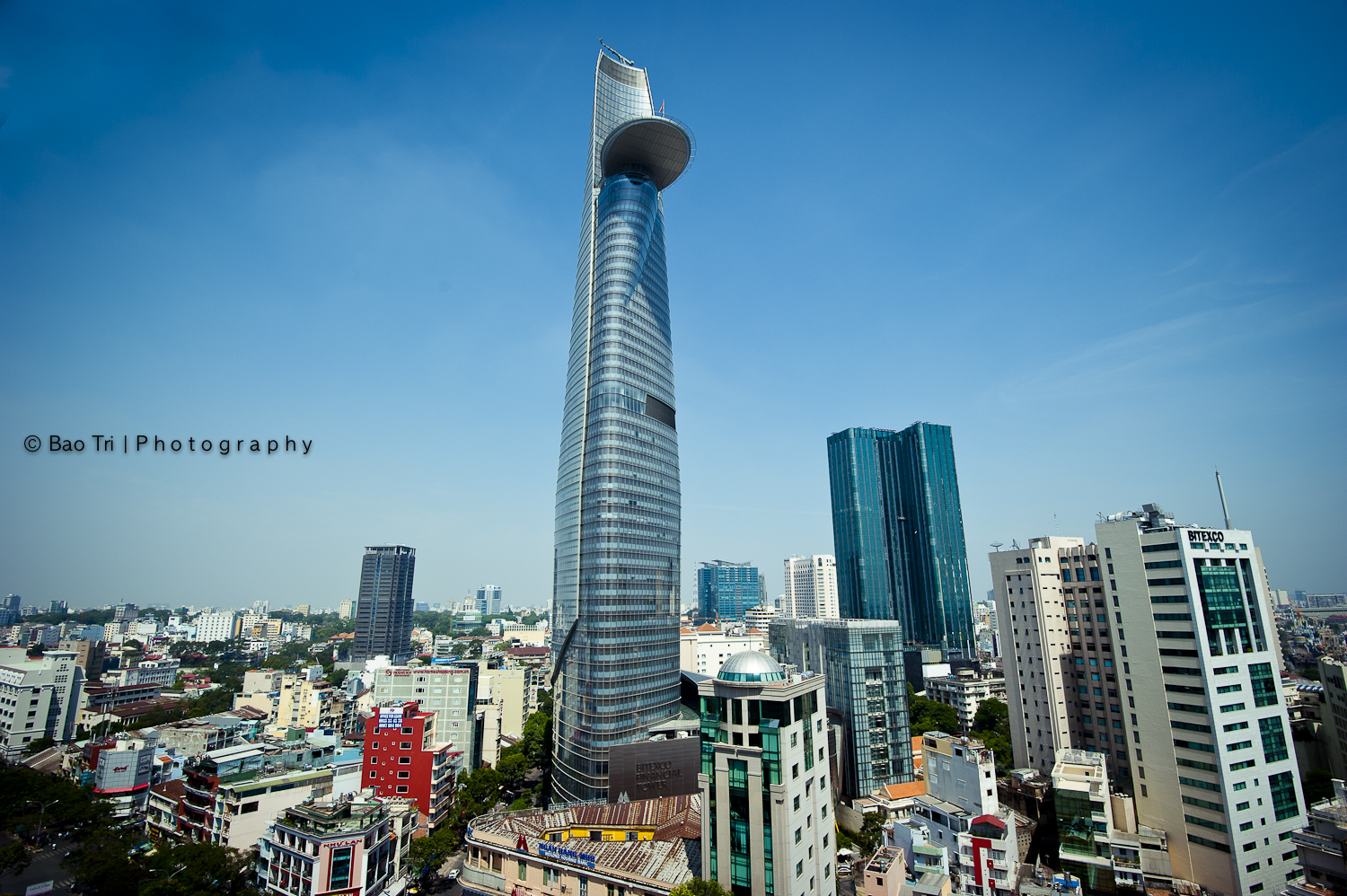

Bitexco Financial Tower – Ho Chi Minh City, Vietnam

Posted in Built by Rachel Schutte on February 24, 2015

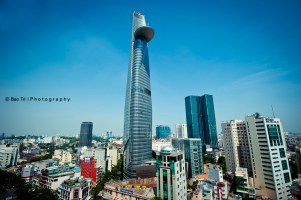

302 Bitexco_Financial_Tower_2002201252FStitched Panorama
1, 2, 3, 4]

Building: Bitexco Financial Tower
Location: Ho Chi Minh City, Vietnam
Completed: 2010
Architect: Carlos Zapata Studio
Structural Engineer:  Leslie E. Robertson Associates
Construction: Hyundai Engineering and Construction with Turner International

AE Interests:

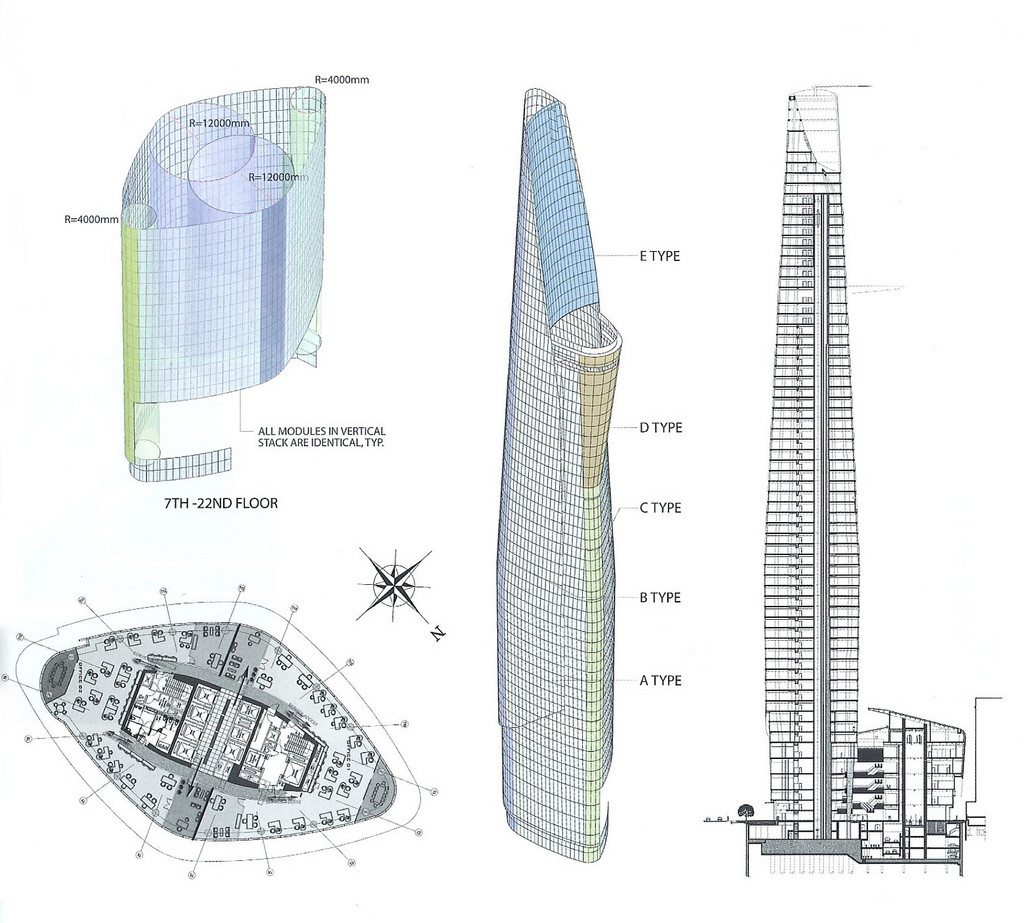

Essentially an all-concrete structure with composite perimeter columns and concrete core walls. Office floors framed with reinforced concrete flat plate system. Poor soil conditions due to proximity to the Saigon River and the Mekong Delta; very long foundation piers (265ft). Perimeter tapers inward at lower 20 floors, limiting width and resistance to building sway. Structural design uses concrete outriggers and belt trusses are used to stiffen tower against swaying motion. 16 elevators.

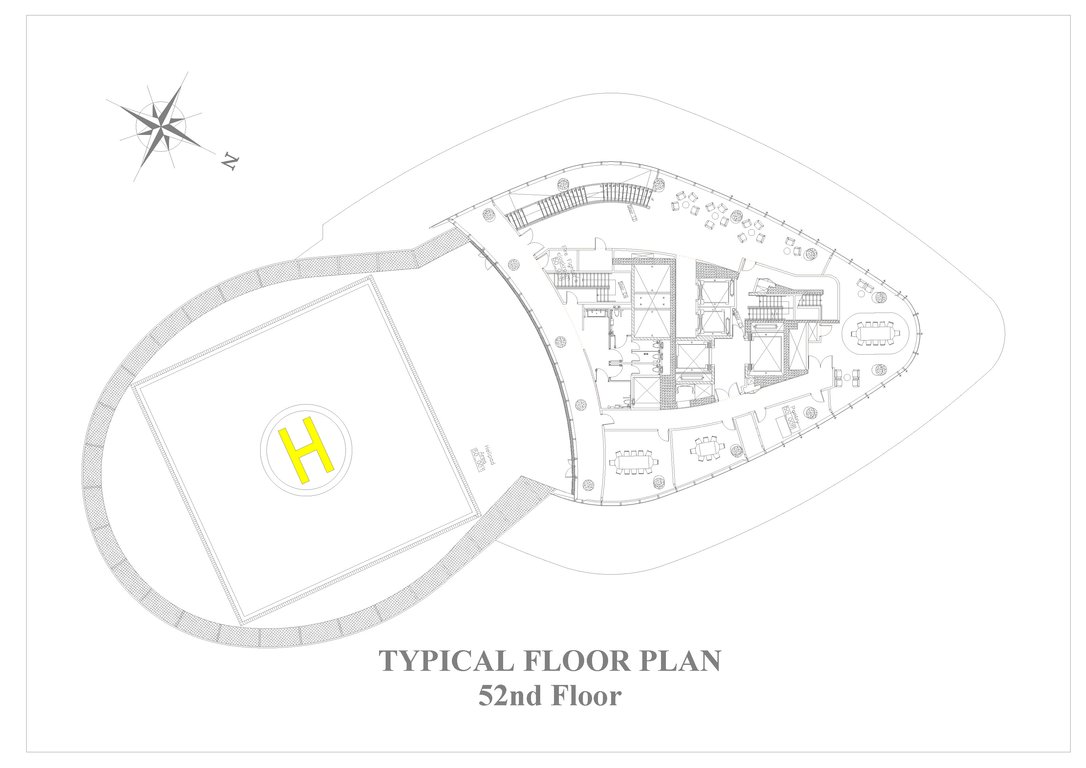

Helipad cantilevered out on 52nd floor. Steel girder and beam system used because most economical. Almost the size of the 52nd floor itself.

[1, 2]

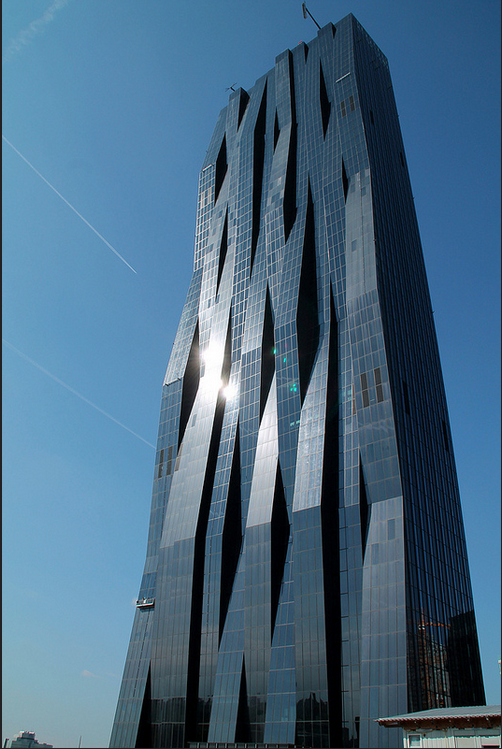

DC Towers I + II – Vienna, Austria

Posted in Built by Rachel Schutte on September 9, 2014

DC Towers 1 & 2  DC Towers 1 & 2 2  dc tower 1

Design Architect: Dominique Perrault Architecture
Architect of Record: Hoffmann & Janz Architectes
Architectural Engineer: Perrault Projets
Structural Engineer: Bollinger & Grohmann, Gmeiner Haferl Zivilingenieure ZT GmbH

AE Interest: elevated slab of the Donau-City is continued; large terrace provides direct access to the Neue Donau river; two towers are treated as two halves of a block; folds in the facade appear malleable making the building look liquid in some lights

Notes: Construction of Tower I (60 stories) was complete in 2013 and Tower II (44 stories) should begin soon; tallest towers in Austria



Guangzhou International Finance Center – Guangzhou, China

Posted in Built by Rachel Schutte on September 9, 2014

Guangzhou International Finance Center  Guangzhou International Finance Center 2

Design Architect: Wilkinson Eyre Architects
Architect of Record: Architecture Design Institute of South China University of Technology
Structural Engineer: Arup; Architecture Design Institute of South China University of Technology
Construction Firm: China State Construction Engineering Corporation
Construction Completed: 2010

AE Interest: diamond shaped structure uses 20% less steel than similar designs; taper atrium and raked floors possible because of diamond shape

Notes: 103 stories; won 2012 RIBA Lubetkin Prize presented to the best new building outside the EU; contains offices, a conference center, retail, apartments, hotel, and sightseeing spaces at the top

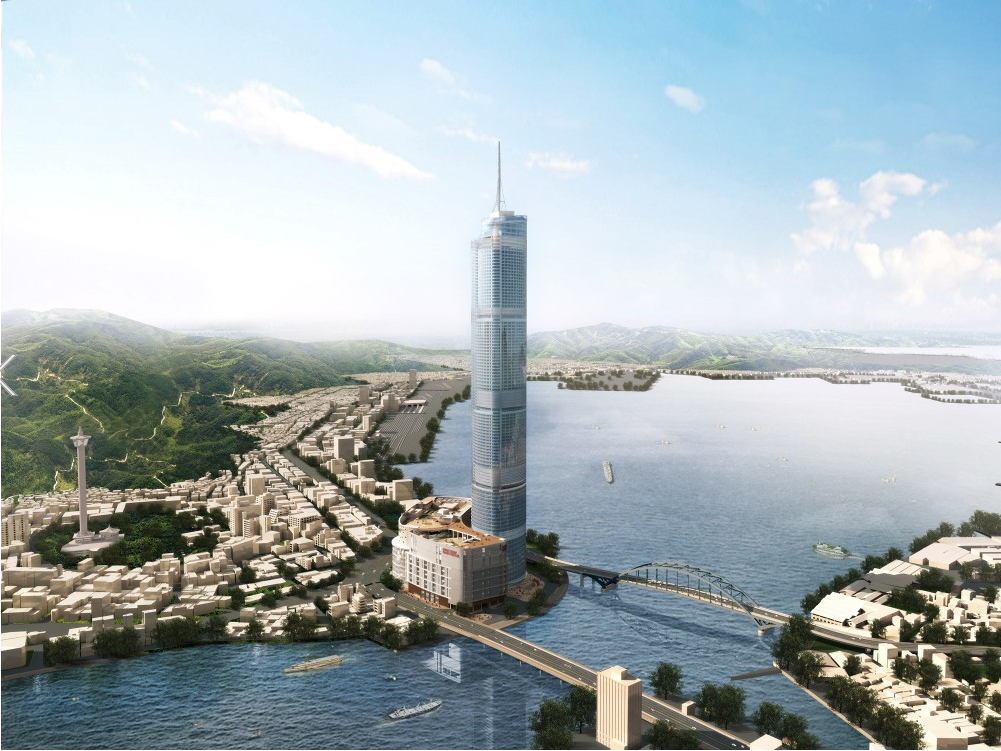

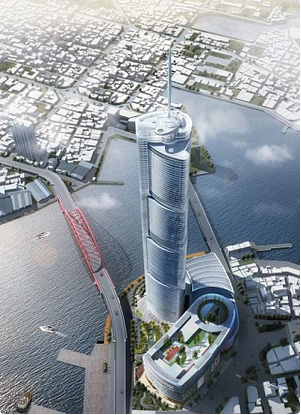

Busan Lotte Town Tower – Busan, South Korea

Posted in Built by Rachel Schutte on September 9, 2014

busan lotte  busan lotte 2  busan lotte construction

Design Architect: SOM
Architect of Record: Heerim Architects & Planners
Structural Engineer: SOM
Construction Firm: Lotte Construction Manager
Construction: began 2011; scheduled to be complete 2020

AE Interest: located on a peninsula between two bridges; use of a “Y” shaped buttress minimizes material usage and maximizes load resistance allowing different column layouts in all 4 tiers; 24 hour pedestrian walkway around base; will house retail, offices, residential, hotel and a rooftop observation deck

Notes: 107 floors; to allow for tenant custom improvements, office spaces will have open floor plates

Article Links:

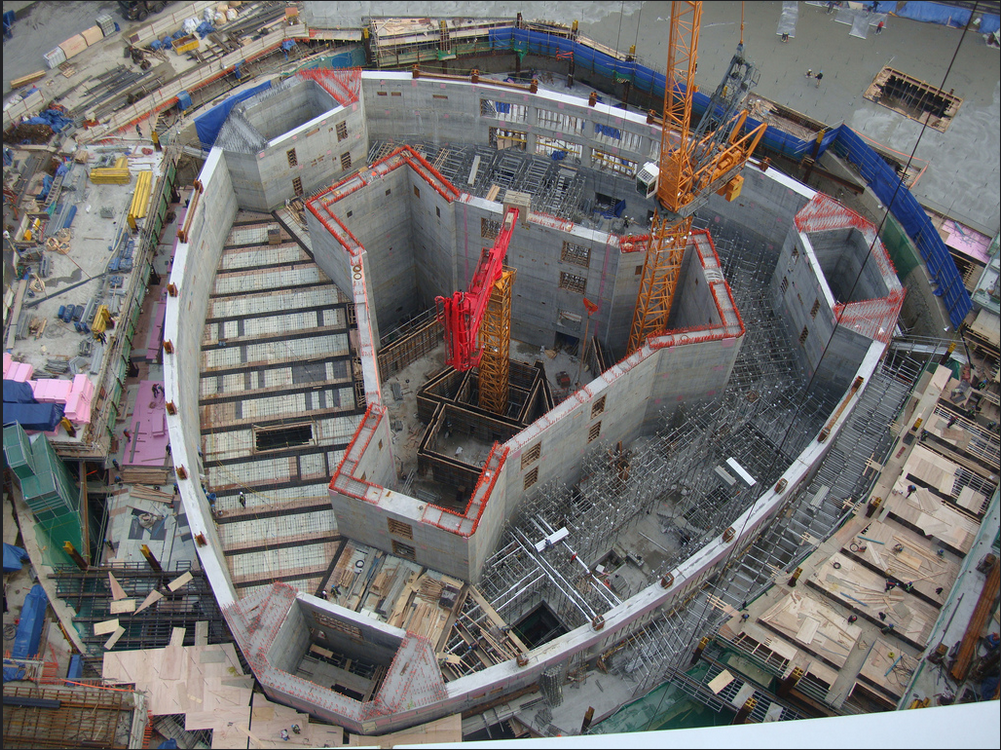

[1] (flicker of construction photos)

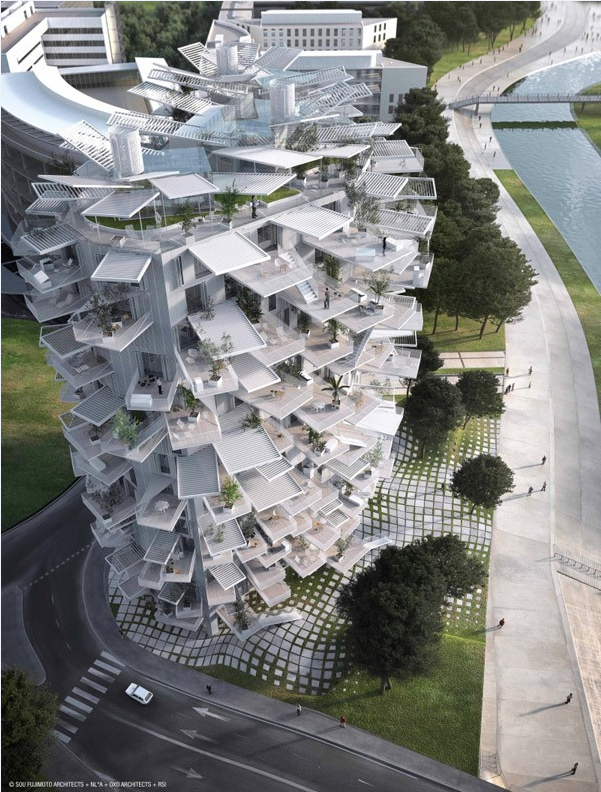

White Tree (L’Arbre Blanc) – Montpellier, France

Posted in Built by Rachel Schutte on September 9, 2014

White Tree  white tree 2  white tree

Design Architect: Sou Fujimoto Architects
Architect of Record: Nicolas Laisné Associés (NL*A) and Manal Rachdi Oxo Architects
Structural Engineer: André Verdier, Frank Boutté Consultants
Unusual/Special firms to acknowledge:
Landscape Designer: Bassinet Turquin Paysage
Design And Environmental Engineering : Frank Boutte Consultants

AE Interest: Aims to connect the old and new districts of Motpellier; designed to look like a tree to follow city’s theme of outdoor living; feeds off of local natural resources (units are passively cooled; solar fireplaces); contains residences, a common area, office buildings, a bar with a view and an art gallery with the intent that everyone in the city will find use in the building

Notes: Won the “Architectural Folie of the 21st Century” competition; 17 stories tall

Article Links:

[1] [2]


Clearpoint Tower – Rajagiriya, Sri Lanka

Posted in Built by Rachel Schutte on September 9, 2014

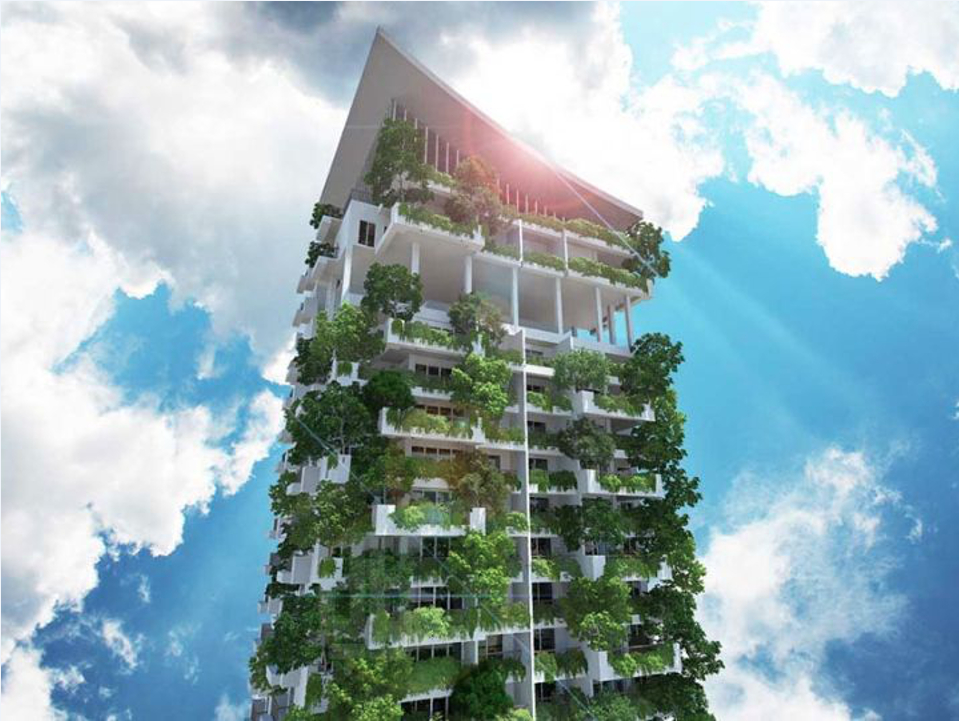

Clearpoint Tower  Clearpoint-Tower-Top

Building Name: Clearpoint Tower
Design Architect: Milroy Perera Associates
Architect of Record: Geoffrey Bawa of Sri Lanka
Structural Engineer: Mäga Engineering
Scheduled to be complete in 2015

AE Interest:

Will be the tallest vertical garden in the world; exterior of the building consists of planted terraces that block all exterior glass from direct sunlight to minimize solar heat gain; terraces are complete with an automatic drip irrigation system and the plants will act as sound and heat buffers, providing cleaner air to the apartments and also allowing natural ventilation to reduce air conditioning systems to a minimum.

Notes: 164 spacious apartments spread over 46 floors overlooking the Diyawanna Lake in Kotte and less than 10km from the largest city in Sri Lanka, Colombo.

Article Links:
[1] [2]
