Toyo Ito Museum of Architecture Steel Hut – Imabari, Japan

leave a comment »

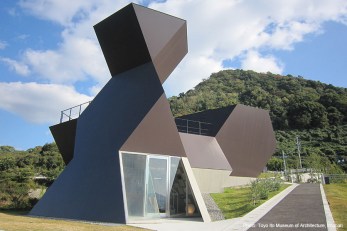

tima_ae photo  tima_close uptima_overview

[1,2,3]

Building: Toyo Ito Museum of Architecture

Location: Imabari, Japan

Architect: Toyo Ito & Associates

Completed: 2011



AE Interest: Steel sheeting skin. 6mm steel plate, different types of polyhedron modules, steel frame, reinforced concrete, interior cave or womb like structure



Article:

[1,2,3,4]

Written by Deanna Rodrigues

November 8, 2019 at 2:18 pm

Posted in Built

Grid Commercial Building – Nishinomiya, Japan

leave a comment »

grid concrete_overall photo  grid_elevation planL-grid_close up

[1,2,3]

Building: Grid Commercial Building

Location: Nishinomiya, Japan

Architect: T-Square Design Associates

Structural Engineer: Amano Structural Engineering Office

Completed: 2018



AE Interest: concrete finished frame structure, grid pattern of facade seen from every angle of the building, facade designed to frame advertisements



Articles:

[1,2,3]

Written by Deanna Rodrigues

November 8, 2019 at 2:18 pm

Posted in Built

Tomioka Chamber of Commerce and Industry – Tomioka, Japan

leave a comment »

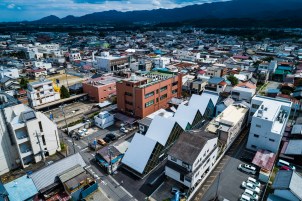

photograph by Katsuhisa Kida / FOTOTECA  Tomioka_Inner_Outer_Frame_Diagram-imagesphotograph by Katsuhisa Kida / FOTOTECA  photograph by Katsuhisa Kida / FOTOTECA

[1,2,3,4]

Building: Tomioka Chamber of Commerce and Industry

Location: Tomioka, Japan

Architect: Tezuka Architects

Structural Engineer: Ohno JAPAN

Lighting Design: Bonbori Lighting Architects & Associates, Inc

Completed: 2018



AE Interest: renovation of prior building, existing timber structure was reinforced with steel framing, diagonal members used as planar rigidity instead of trusses, repeating roof ridges, angle braces and knee braces support the framework, repeating diagonal grid pattern



Article:

[1]

Written by Deanna Rodrigues

November 8, 2019 at 2:18 pm

Posted in Built
