Taiyuan Museum of Art – Taiyuan, China

Posted in Built by Ryder McGough on September 12, 2014

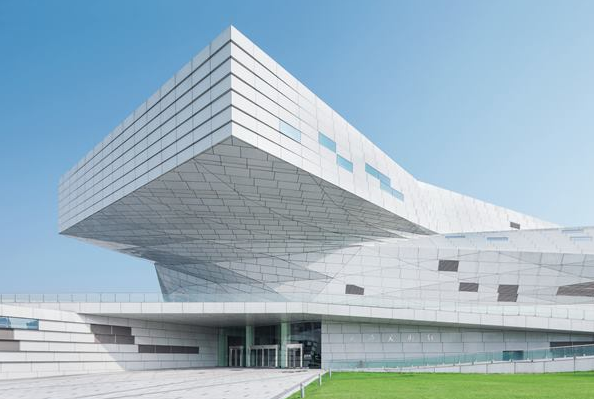

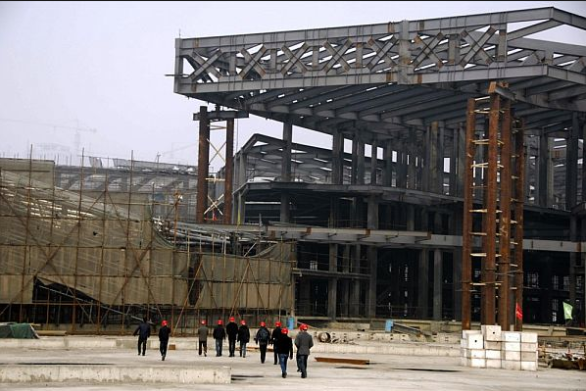

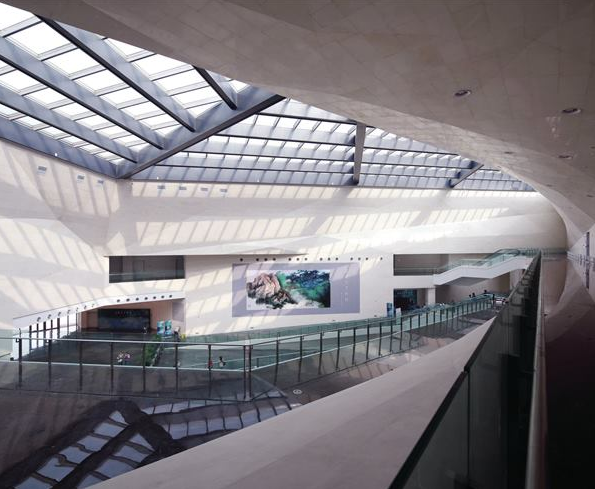

Screen Shot 2014-09-12 at 10.47.24 AM  Screen Shot 2014-09-12 at 10.43.48 AM  Screen Shot 2014-09-12 at 10.44.14 AM
(Source for Images)

Project: Taiyuan Museum of Art
Location: Taiyuan, China
Client: Taiyuan City Government
Architect: Preston Scott Cohen
Structural Engineer: Zhidong Wang
Size: 40,505 square meters (435,992 square feet)
Cost: $60 million

AE Interest: Cantilevering Sections of building, abundance of natural light, steel frame structure

Spiral Tower (Concept) – Barcelona, Spain

Posted in Built by Ryder McGough on September 12, 2014

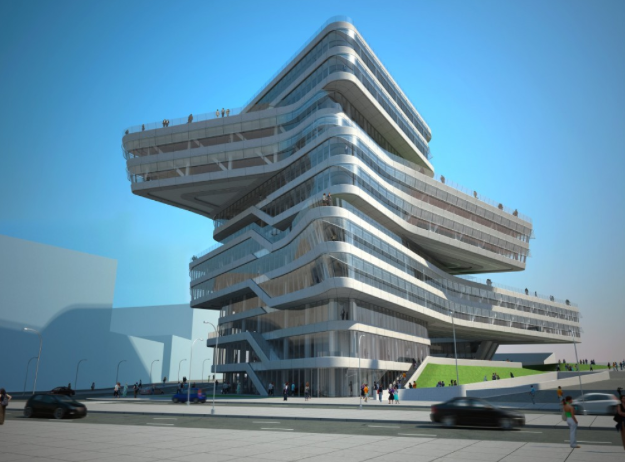

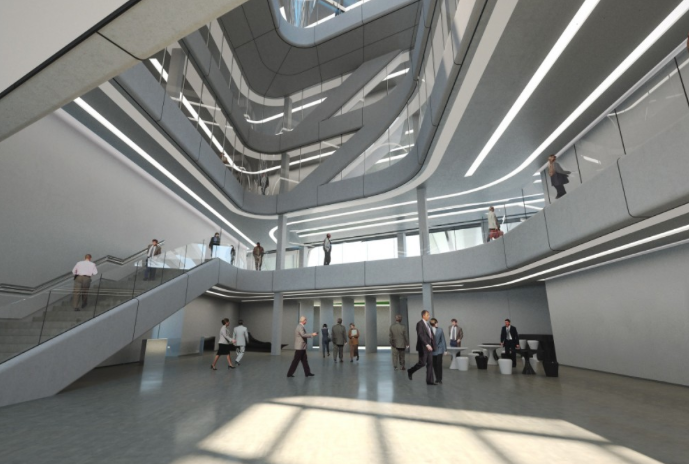

Screen Shot 2014-09-12 at 12.57.26 AM  Screen Shot 2014-09-12 at 1.04.13 AM
(Source for Images)

Architect: Zaha Hadid Architects and Patrik Schumacher
Location: Barcelona, Spain
Local Architect: Ferran Pelegrina Associats SL
Structural Engineering: BOMA Brufau, Obiol, Moya & Ass. SL
M/E/P Engineering: Grupo JG. SL
Facade Engineering: Ferrés Arquitectos y Consultores.SL
Lighting Design: Architectural Lighting Solutions
Project Area: 27,650 sqm
Project Year Concepts: 2006-2011

AE Interest: The cores will be built underground and reinforced concrete, sections of tower act as cantilevers

Muqarnas Tower – Riyadh, Saudi Arabia

Posted in Built by Ryder McGough on September 10, 2014

muqarnas tower 1 muqarnas tower 2  muqarnas tower 3
(Source for Images)

Architects: Skidmore, Owings & Merrill
Location: Riyadh, Saudi Arabia
Year: 2013
Senior Design Architect: Scott Duncan, AIA
Design Architect: Jackie Wong, AIA
Area: 890,000 sq ft
Structural Engineering: Skidmore, Owings & Merrill
Owner: Rayadah Investment Company

AE Interest:  Façade provides necessary shading in Saudi Arabian climate, Horizontal fins of varying depths on the north façade are calibrated based on the actual quantity of sun falling on this surface., LEED certification, seven-story high entrance lobby, Façade provides more premium “corner style” offices


Dadong Art Center – Kaohsiung City, Taiwan

Posted in Built by Ryder McGough on September 10, 2014

dadong 2  Dadong 3  dadong 4
(Source for Images)

Building Name: Dadong Art Center
Architects: de Architekten Cie + MAYU architects
Location: Kaohsiung City, Taiwan
Structural Engineer: Arup Amsterdam + Tien-Hun Engineering Consultant Inc.
Acoustics Consultant: Peutz & Associates + Gade & Mortensen Akustikk + Prof. Wei-Hwa Chiang NTUST
Environment Technology Consultant: Hander Engineering & Construction Inc. + I. S. Lin & Associates
Area: 36,470 sqm
Completed 2012

AE Interest: The roof shape prevents against extreme climatic conditions such as Typhoon, Wide holes in the roof guide the water to inner springs, Warm air rises to the top roof openings generating a fresh inner draft, In order to achieve optimal acoustics in both music and theater use the ceiling of the auditorium is adjustable according to music and theater modes, Sound absorption materials are also retractable behind the wood lamella


FC Bate Football Stadium – Borisov, Belarus

Posted in Built by Ryder McGough on September 10, 2014

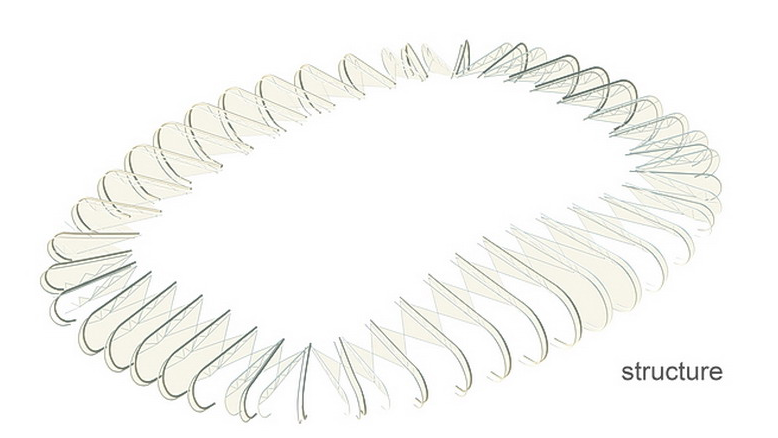

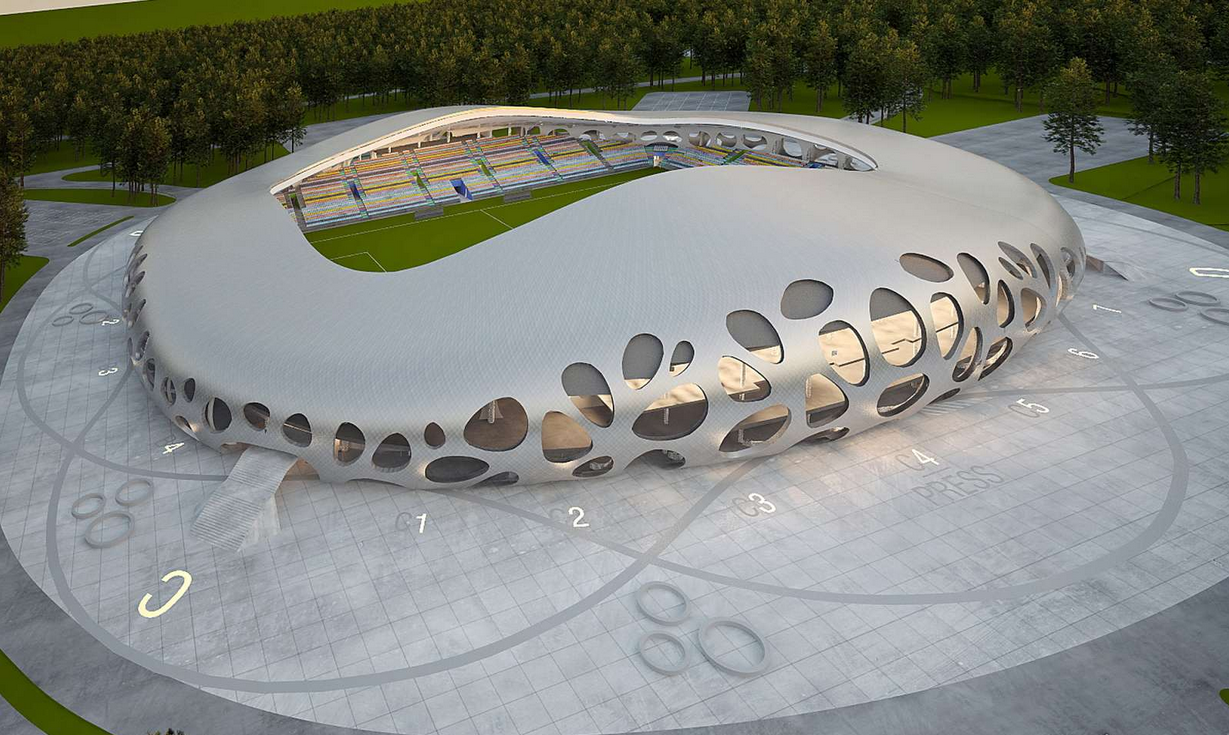

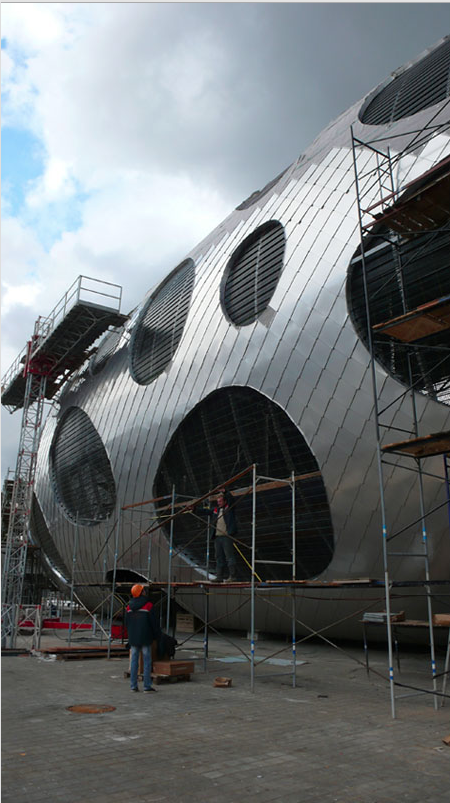

Football stadium 1  Football stadium 2  Stadium 5

Building Name: FC Bate Football Stadium
Location: Borisov, Belarus
Architect: OFIS Architects
Client: FC Bate and Government of Belarus
Area: 32000 m2
Under Construction: 2009-2014
Contractor: Stroytres
Capacity: 13000

AE Interest: Shape provides good acoustics, Naturally ventilated covered foyer, Roof structure is made
by metal beams with metal aluminium cladding, Max height is 24 m
