Building: Museum of the Bible
Location: Washington, DC
Address: 400 4th St SW, Washington, DC 20024, US
Renovation Completed: 2017
Area: 430000 ft²
Design Architect: SmithGroup
Executive Architect: SmithGroup
Civil Engineer: Kline Engineering and Consulting
General Contractor: Clark Construction
Lighting Design: SmithGroup
MEP Engineering: SmithGroup
Landscape: Michael Vergason Landscape Architects
Structural Engineering: Tadjer Cohen Edelson
Historic Preservation: SmithGroup
Fire Protection Engineering: SmithGroup
Client: Museum of the Bible

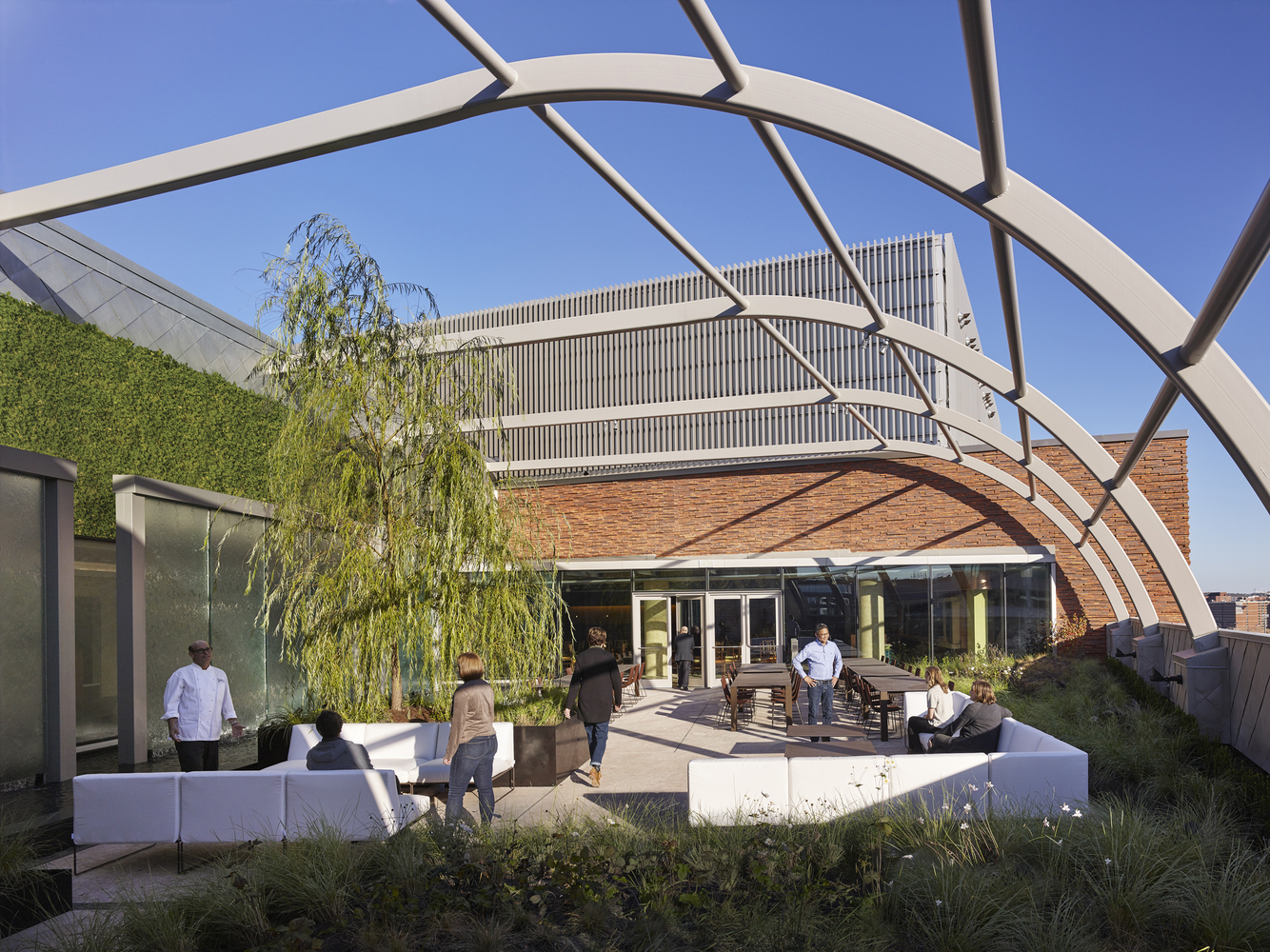

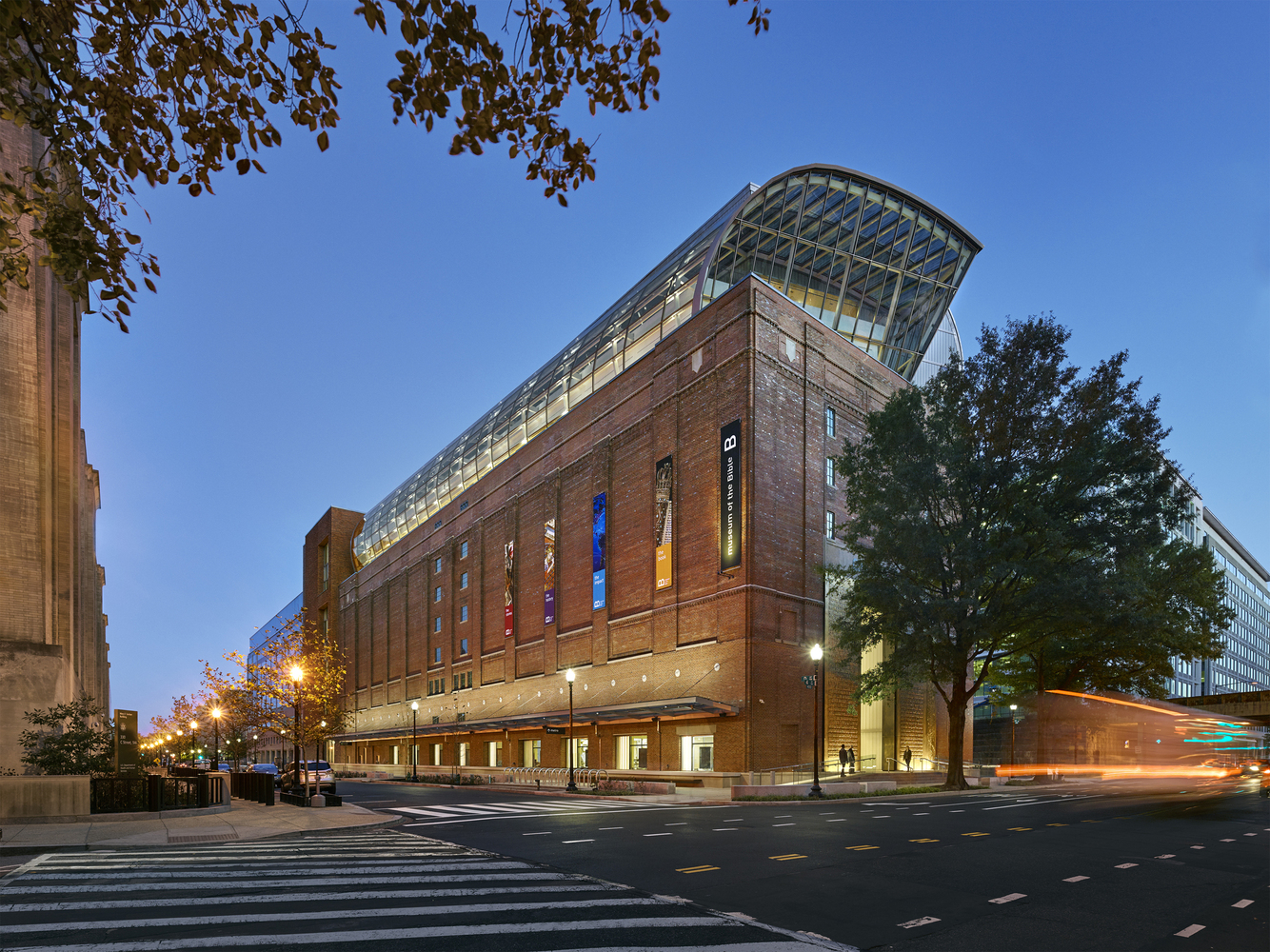

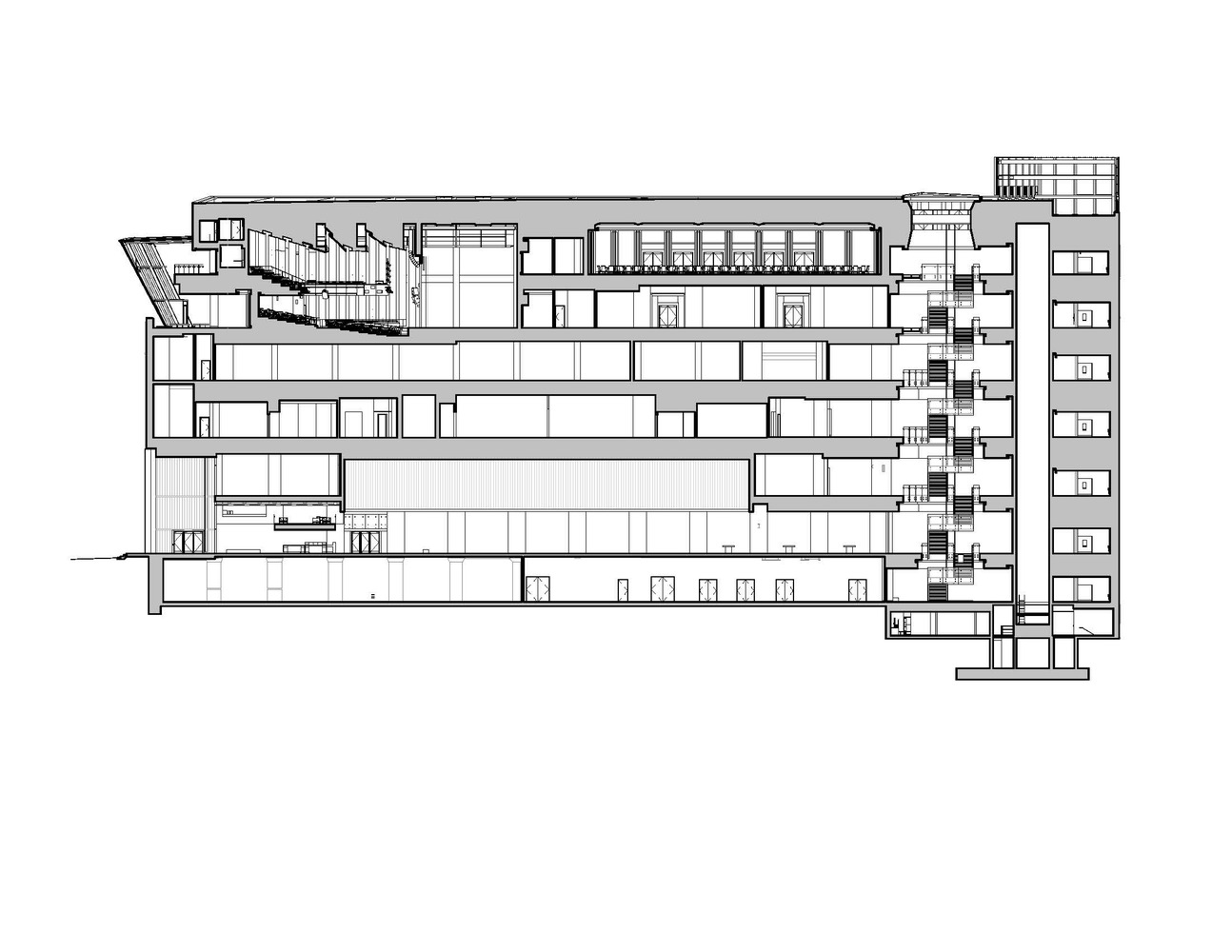

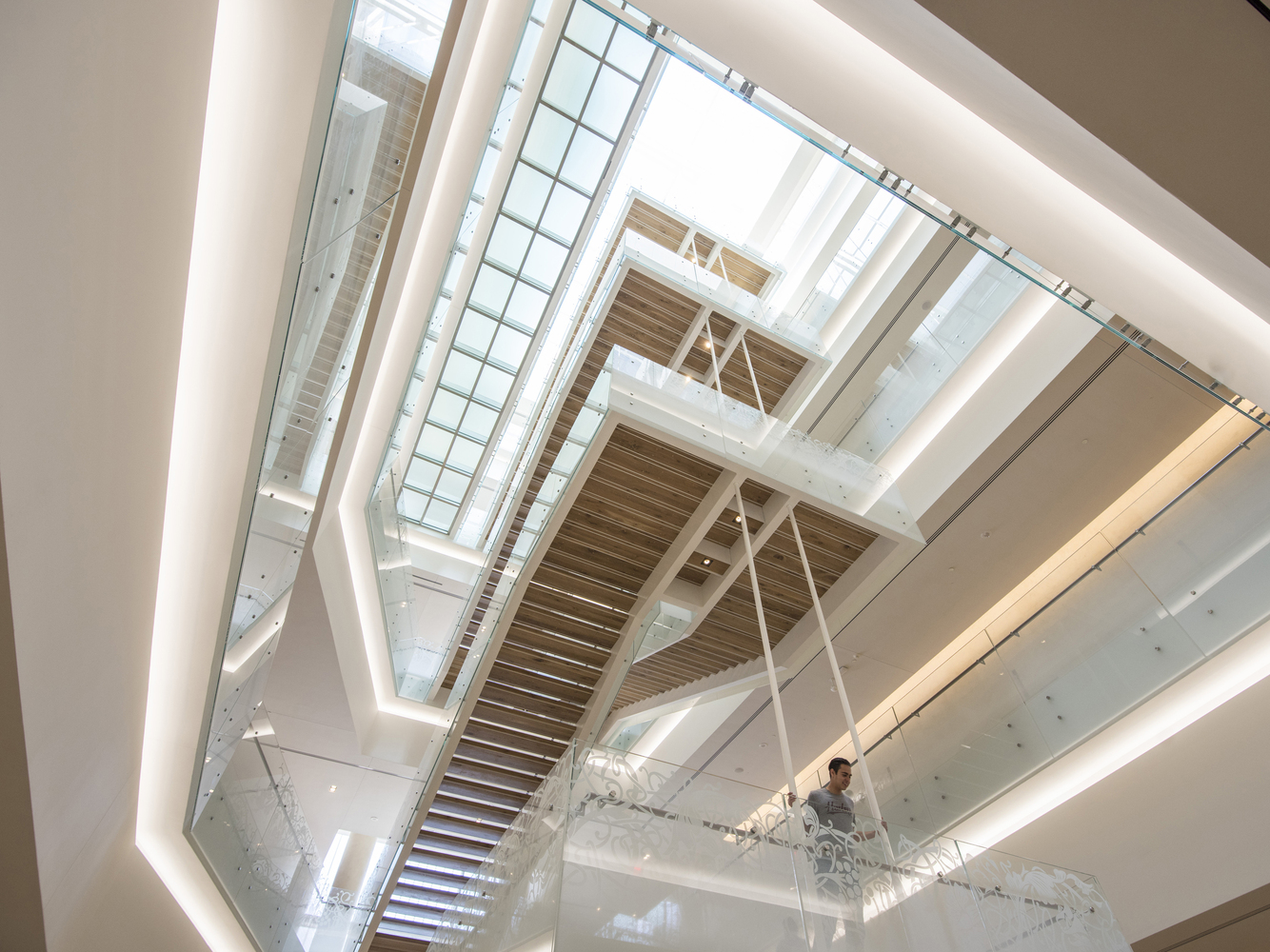

AE Interests: Originally built in 1922, renovated to eight levels with selective floor demolition, structural retrofit of existing concrete columns with steel plate reinforcement, floors doubled to approximately 20 ft in height, 7,072 linear ft of driven piles for MEP systems, two-level glass and steel roof addition with visible structural rib, curved aluminum-framed glazed curtain wall with channel glass infill, skylights, zinc batten panel roofing, and green roof system
