Building: Adobe Utah Campus

Location: Lehi, Utah

Address: 3900 Adobe Way, Lehi, UT 84048

Year: 2023

Design Architect: WRNS Studio

Local Architect: GSBS Architects

Client: Adobe Systems Inc.

Contractor: Oakland Construction

Structural Engineers: Dunn Associates, Inc.

Civil Engineers: Ensign Engineering

MEP Engineers: Colvin Engineering Associates and Spectrum Engineers (both are now known as Lynk Engineers)

Landscape Architect: Arc Sitio Design and WRT

Environmental Engineer: Rapt Studio

Size: 600,000 square feet

AE Interests:

Sources: [1][2][3][4][5]

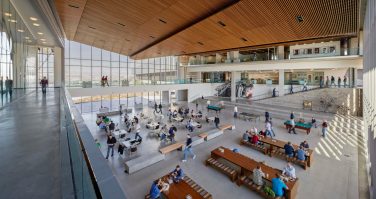

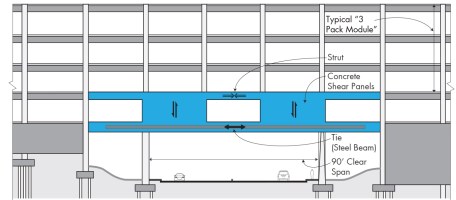

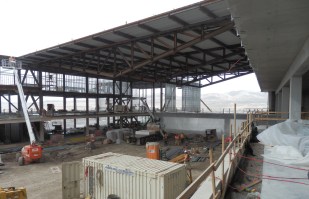

The center atrium utilizes an inverted king-truss to minimize interior columns. They were able to achieve a 100-foot column-free span across over the atrium. In order to have the bridge cross over the 120-foot roadway, they incorporated a moment-frame system to cantilever over the reinforced concrete base. For the raised structures, they used textured pour-in-place concrete to help hold up the steel-and-glass facades. The wide use of concrete was meant to reflect Utah’s mountains. It has thermally broken extensive glazing throughout to keep the building comfortable and energy efficient.
