Al Sharq Tower – Dubai, United Arab Emirates

leave a comment »

alsharq4   alsharq2alsharq1   alsharq3

[1234]

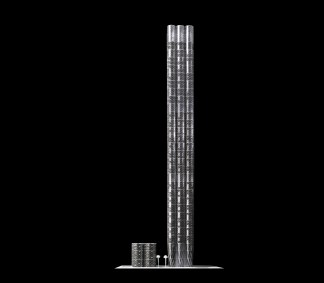

Building: Al Sharq Tower
Location: Dubai, United Arab Emirates
Architect: SOM
Structural: SOM
Design Completion: 2008
Site Area: 1,300 m2
Project Area: 146,785 m2
Number of Stories: 102
Building height: 367

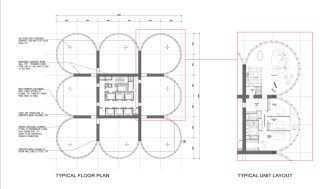

AE Interests:  The project is conceived as a cellular structure of nine bundled tubes, allowing a height of 360 meters with a challenging aspect ratio of 1:10. Each 12-meter diameter tube, with an individual aspect ratio of 1:30, amplifies the notion of slenderness as the structural cables wrap around each tube’s perimeter, and tie back to the tower’s core concrete structure. The cable structure allows for a column-free floor plate, providing complete flexibility of unit configurations and maximizing views.

Articles:
[1] [2]

Written by Tomas Garcia

May 12, 2020 at 2:32 pm

Posted in Built
